ESP32-C6-DevKit-Lipo

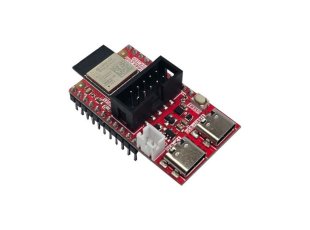

ESP32-C6-DevKit-Lipo - Open Source Hardware Board
ESP32-C6-DevKit-Lipo - Open Source Hardware Board ESP32-C6-DevKit-Lipo - Open Source Hardware Board ESP32-C6-DevKit-Lipo - Open Source Hardware Board
ESP32-C6 WiFi6, Bluetooth 5 LE, Zigbee, Thread Matter breadboard friendly development board
Price8.95 EUR
10 - 49 pcs8.50 EUR
50 - 10000 pcs8.06 EUR
In Stock

ESP32-C6 is Espressif’s first Wi-Fi 6 (IEEE 802.11ax) SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN) protocol which is the basis for the Zigbee, ISA100.11a, WirelessHART, MiWi, 6LoWPAN, Thread, and SNAP specifications.

FEATURES

  • ESP32-C6-MINI-1-N4 module:
    - 32-bit RISC-V 160Mhz processor
    - 512KB RAM
    - 4MB SPI flash
    - 2.4 GHz Wi-Fi 6 (802.11ax)
    - Bluetooth 5.3 certified, Zigbee and Thread
  • 18 GPIOs in two 0.1" step headers, breadboard-friendly row spacing at 0.9"
  • USB-C for CH340x USB-serial adapter (power and serial programming)
  • USB-C for native USB (power and JTAG debug)
  • User LED
  • Li-Po battery charger and connector
  • LED for battery charger status
  • Option for external power detection and battery voltage measurement
  • User/boot button
  • UEXT connector
  • Dimensions: (45 x 25.4)mm
